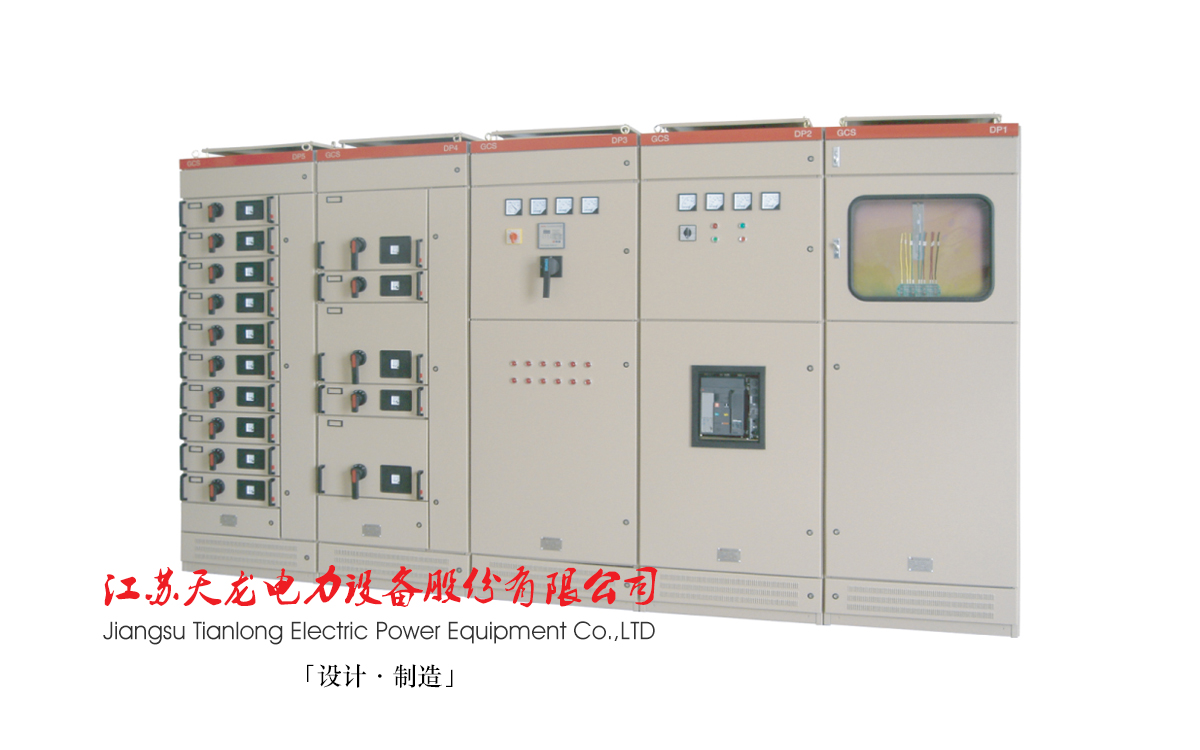

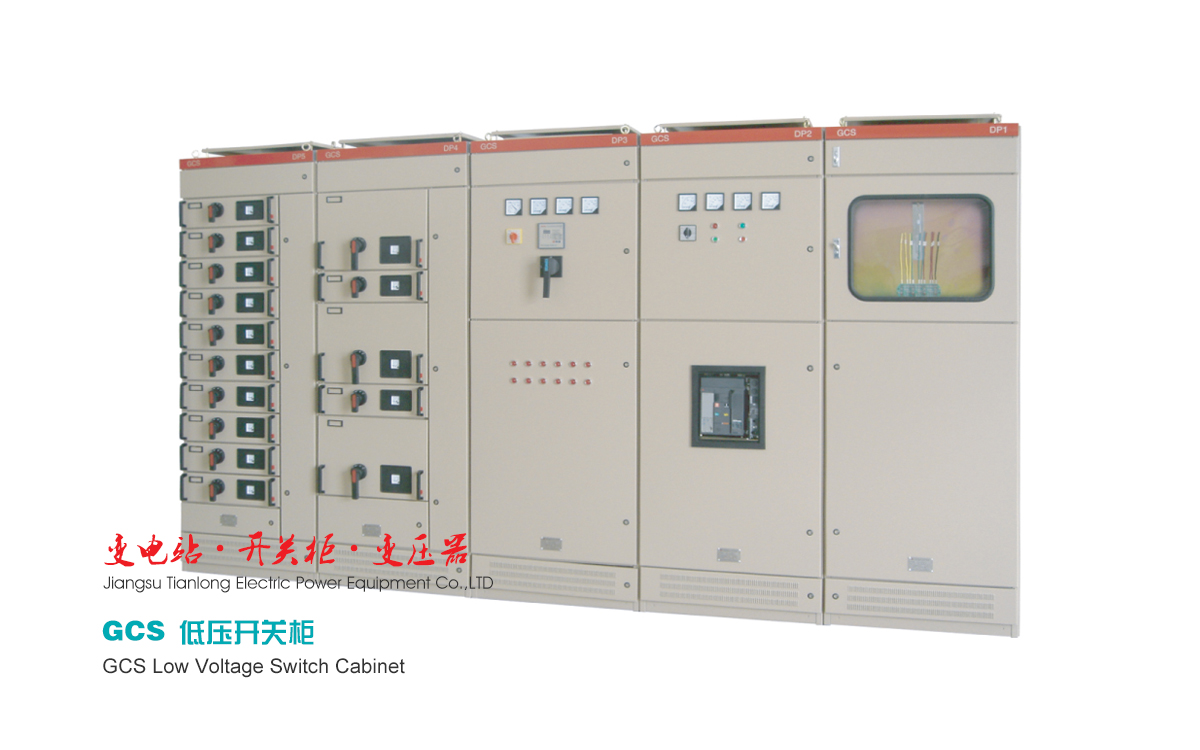

产品简介

Brief introduction to the products

GCS适用于发电厂、变电站、石油化工部门、厂矿企业，饭店及高层建筑等低压配电系统的动力、配电和电动机控制中心、电容补偿的电动机控制中心，电容补偿的电能转换、分配与控制用。

在大单机容量的发电厂、大规模石化等行业的低压动力控制中心和电动机控制中心等电力使用其使用场合时能满足与计算机接口的特殊需要。

装置是根据电力部门、广大电力用户及设计部门的要求，为满足不断发展电力市场对增容、计算机接口、动力集中控制、方便安装维修、缩短事故处理时间等需要。本着安全、经济、合理、可靠原则设计的新型低压抽出式开关设备。产品具有分断、接通能力高，动稳定性好，电气方案灵活，组合方便，系列性、实用性强、结构新颖，防护等级高等特点。可以做为低压抽出式开关设备的换代产品使用。

GCS is suitable for the power, power distribution and motor control center, motor control center of capacitance compensation, and the conversion, distribution and control of electric energy of capacitance compensation and other low voltage systems in power plants, transformer substations, petrochemical departments, factories and mining enterprises, hotels and high-rise buildings.

It can meet the special needs to connect the computer interfaces in the low-voltage power control centers and motor control centers of the power plants and large scale petrochemical industries and other industries for the use of electricity.

The device is in accordance with the requirements of the Department of Electric Power, many power consumers and design department, and to meet the needs of compatibilization, computer interfaces, power centralized control, easy installation and maintenance and the decrease of time for dealing with accident for continuous development of electricity market. In the principles of safety, economy, reasonableness and reliability, we have designed the new type of low-voltage draw-out type switchgear, which is characterized by its high capability of breaking and connecting, good dynamic stability, flexible electrical programs, easy combination, powerful seriation and practicability, new structure and high protection level, etc. It can be also used as an upgrade and updated product of the low-voltage draw-out type switchgear.

技术参数

Technical Parameters

结构特点及功能

Structural Characteristics and Functions

★装置的主构架采用8MF型钢，构架采用和部分焊接的两种结构形式。主构上均有安装模数孔E=20mm。

★装置各种功能室严格分开，其隔室主要分为功能单元室、母线室、电缆室、各单元的功能作用相对独立。

★装置没有采用将水平主母线置柜顶的传统设计，使电缆室上下均有出线通道。

★装置柜体的尺寸系列如下表：

The main framework of the device adopts 8MF profile steel, and the framework adopts two structure forms such as part welding. There are mounted modulus holes E=20mm on main framework.

Various function rooms of the device are strictly separated, and the compartments are mainly divided into function unit room, bus room and cable room. The functions of each unit are relatively independent.

The device does not adopt the traditional design to place the horizontal main buses on the top of the cabinet, so that there are cable channels both in the upper and lower part of the cable room. .

The dimensions of the cabinet of the device are as follows:

使用条件

Conditions of Use

※环境温度不高于+40℃，不低于-5℃ ，24小时内平均温度不高于+35℃。超过时，2.2需根据实际情况降容运行；

※海拔不超过2000m；

※装置安装时与垂直的倾斜度不超过5度，且整组柜列相对平整；

※周围空气应无腐蚀性或可燃气体、水蒸气等明显污染，没有爆炸危险的场所。

Ambient temperature shall not be higher than+40℃ nor lower than -5, and the average temperature within 24 hours shall not be higher than +35℃. If exceeding, 2.2 can be operated under capacity reduction according to the actual condition.

Height above Sea Level is not above 2000m；

During the installation of the device, the tilt of the vertical surface does not exceed 5°；And the whole set of cabinet arrangement is relative leveling.

The surrounding atmosphere should be free from the pollution of corrosive or flammable gases, water vapor and other obvious pollution, and the sites shall not have explosion hazards.
